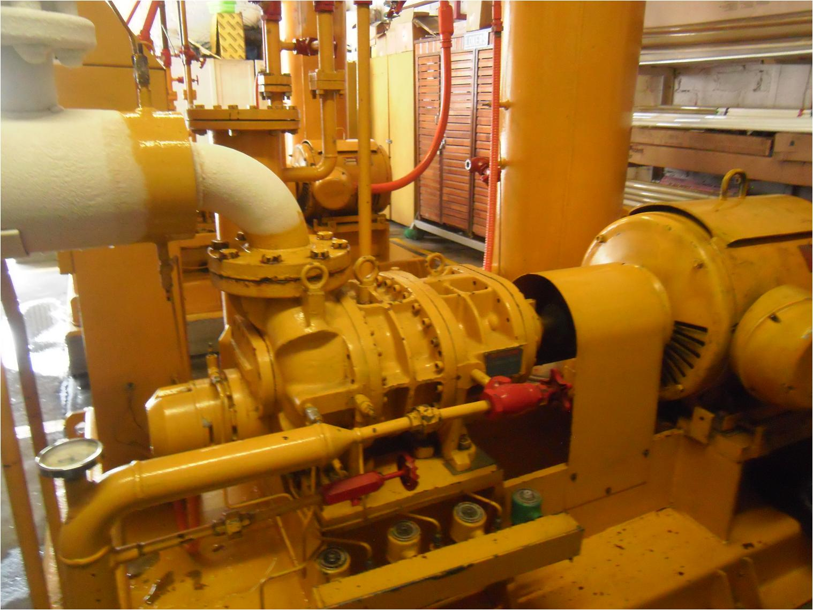

AMMONIA COMPRESSOR
| AMMONIA COMPRESSOR | |
| TYPE | SCREW |
| BRAND | MYCOM |
| MODEL | 160SUD-MX |
| LEAK PSIG | 313 |
| HYD PSIG | 470 |
| BRAND ENGINES | LINCOLN |
| HP | 150 |
| A | 176 |
| RPM | 3530 |
AMMONIA COMPRESSOR 1
| DATE | TIME | SUCTION PRESSURE KG/CM2 | DISCHARGE PRESSURE KG/CM2 | SUCTION TEMPERATURE °C | TEMPERATURA DESCARGA °C | DESC. DIAMETER AND SUCC. INCH |
|---|---|---|---|---|---|---|
| 27/10/2015 | 13:40 | 0.2 | 10.4 | -15 | 52 | 4 |
| 28/10/2015 | 10:10 | 0.2 | 10 | -15 | 49 | 4 |
| 28/10/2015 | 16:00 | 0.2 | 10.4 | -15 | 52 | 4 |
AMMONIA COMPRESSOR 2
| DATE | TIME | SUCTION PRESSURE KG/CM2 | DISCHARGE PRESSURE KG/CM2 | SUCTION TEMPERATURE °C | TEMPERATURA DESCARGA °C | DESC. DIAMETER AND SUCC. INCH |
|---|---|---|---|---|---|---|
| 27/10/2015 | 13:40 | 0.1 | 11.5 | -0.15 | 52 | 4 |
| 28/10/2015 | 10:10 | 0.5 | 11 | -0.9 | 57 | 4 |
| 28/10/2015 | 16:00 | 0.2 | 10 | -15 | 50 | 4 |
CONDENSER
| DATE | TIME | SUCTION TEMPERATURE °C | DISCHARGE TEMPERATURE °C | AMBIENT TEMPERATURE °C | DESC. DIAMETER AND SUCC. INCH |
|---|---|---|---|---|---|
| 27/10/2015 | 13:40 | 49 | 26 | 27 | 4 |
| 28/10/2015 | 10:10 | 55 | 27 | 28 | 4 |
| CONSERVATIVE | LENGTH METERS | 15 |
| WIDTH METERS | 12 | |
| HEIGHT METERS | 18 | |
| HEIGHT METERS | AVOCADO | |
| QUANTITY TONS | 15 – 18 | |
| TEMPERATURE. PRODUCT INLET °C | 21 | |
| TEMP. CONSERVATIVE | -25.5 | |
| FREEZER | LENGTH METERS | 9 |
| WIDTH METERS | 9 | |
| HEIGHT METERS | 8 | |
| PRODUCT | AVOCADO | |
| QUANTITY TONS | 16 | |
| TEMPERATURE. PRODUCT INLET °C | 21 | |
| TEMP. FREEZER | -20.5 | |
| BLAST FREEZER | LENGTH METERS | 4 |
| WIDTH METERS | 4 | |
| HEIGHT METERS | 8 | |
| PRODUCT | AVOCADO | |
| QUANTITY TONS | 3 | |
| TEMPERATURE. PRODUCT INLET °C | 21 | |
| TEMP. BLAST FREEZER | -40 |
